Item ALM-660120-JC-XXXX ALM-639010-BD-XXXX ALM-658030-CG-XXXX ALM-655007-CJ-XXXX
Fan Angle 30° 45° 75° 90°
Wavelength 660nm 639nm 658nm 655nm
LD Power 120mW 10mW 30mW 7mW
Focal Distance 800mm 150mm 200mm 200mm
Download
DataSheet
Image Image Image Image
Packages
Wavelength 450, 520 635, 650,660,780nm
LD Power 7~120mW
Package φ6.5 φ8.5Reference plane φ8
Image Image Image
focal distance fan angle (degree)
A :  <10cm Z : <10°
B : 10cm ~ <20cm A : 10°  ~  < 20°
C : 20cm ~ <30cm B : 20°  ~  < 30°
D : 30cm ~ <40cm C : 30°  ~  < 40°
E : 40cm ~ <50cm D : 40°  ~  < 50°
F : 50cm ~ <60cm E : 50°  ~  < 60°
G : 60cm ~ <70cm F : 60°  ~  < 70°
H : 70cm ~ <80cm G : 70°  ~  < 80°
J : 80cm ~ <90cm H : 80°  ~  < 90°
K : 90cm ~ <100cm J :  90°  ~  < 100°
1 : 1m     ~ <2m K ~ : option
2:  2m    ~ <3m
3 : option

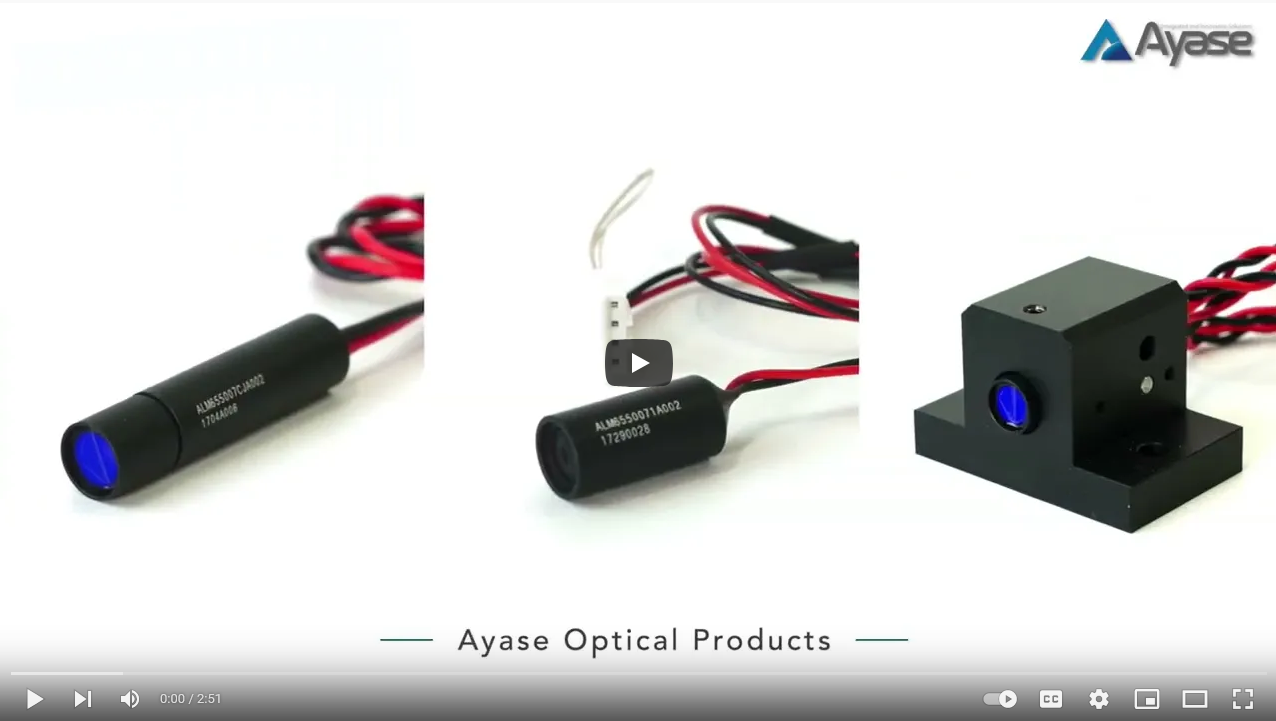

Line Generation Modules

Ayase proudly introduces LINEMANTM – an innovative laser line module integrated with Ayase's proprietary invention in laser line generation optics. The revolutionary LINEMANTM produces a laser line with ideal uniform intensity and achieves ultimate repeatability which is hard to be accomplished with conventional optics. These benefits are offered by a mold-press made LINEMAN lense and a unique automated active alignmen system in our factory.

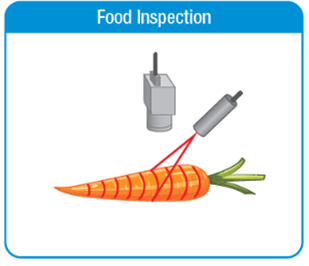

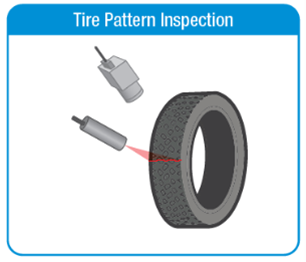

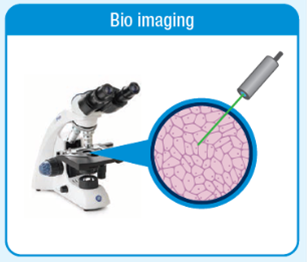

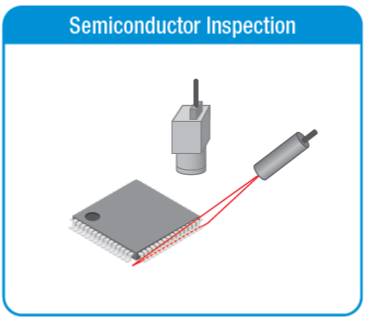

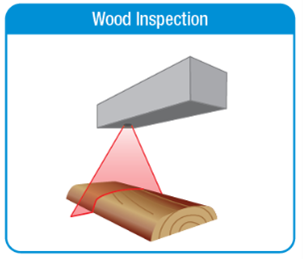

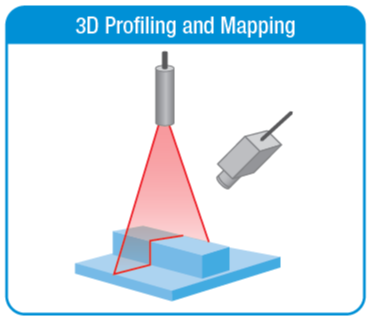

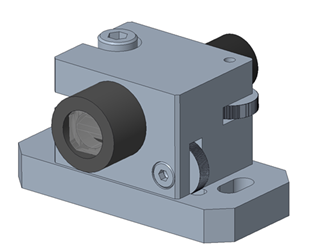

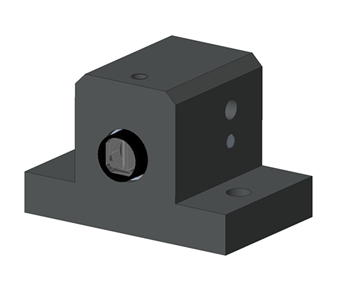

In addition, new LINEMAN package with a reference plane has been released, which makes a positioning set-up simple for all users. Our unique manufacturing system enable to offer flexibility to customize such as fan angle, focal distance, line width, wavelength and output power to customer's needs.
